D1000 Gen2 – BMS Development Kit

Overview

The D1000 Gen2 BMS Development Kit provides a complete, advanced battery management solution for rapid prototyping, evaluation, and development of high-voltage battery systems. This comprehensive kit includes the next-generation D1000 Gen2 BMU with environmental monitoring, multiple Gen2 CMUs with enhanced balancing capabilities, and all necessary harnessing components for immediate system deployment. Designed for engineers, researchers, and developers working on electric vehicle, energy storage, and industrial battery applications, the Gen2 Development Kit delivers cutting-edge technology with significant improvements over Gen1, including 448-cell monitoring capacity, environmental sensors, enhanced security features, and automotive-grade componentry.

Key Features of the D1000 Gen2 BMS

• Advanced D1000 Gen2 BMU: Master controller with 448-cell capacity, environmental sensors, and 5 contactor outputs
• Enhanced CMU Technology: 4x Gen2 CMUs with 14-cell monitoring and 650mA balancing per unit
• Environmental Monitoring: Integrated pressure, humidity, VOC, and NOx sensors for comprehensive safety
• Complete Harnessing Solution: All necessary cables and connectors for immediate system integration
• CAN Communication: CAN-USB adapter for PC connectivity and system configuration
• Enhanced Security: Secure bootloader, firmware integrity checks, and access control features
• Rapid Prototyping: Pre-configured components for immediate development and testing
• Comprehensive Documentation: Complete technical guides and integration support

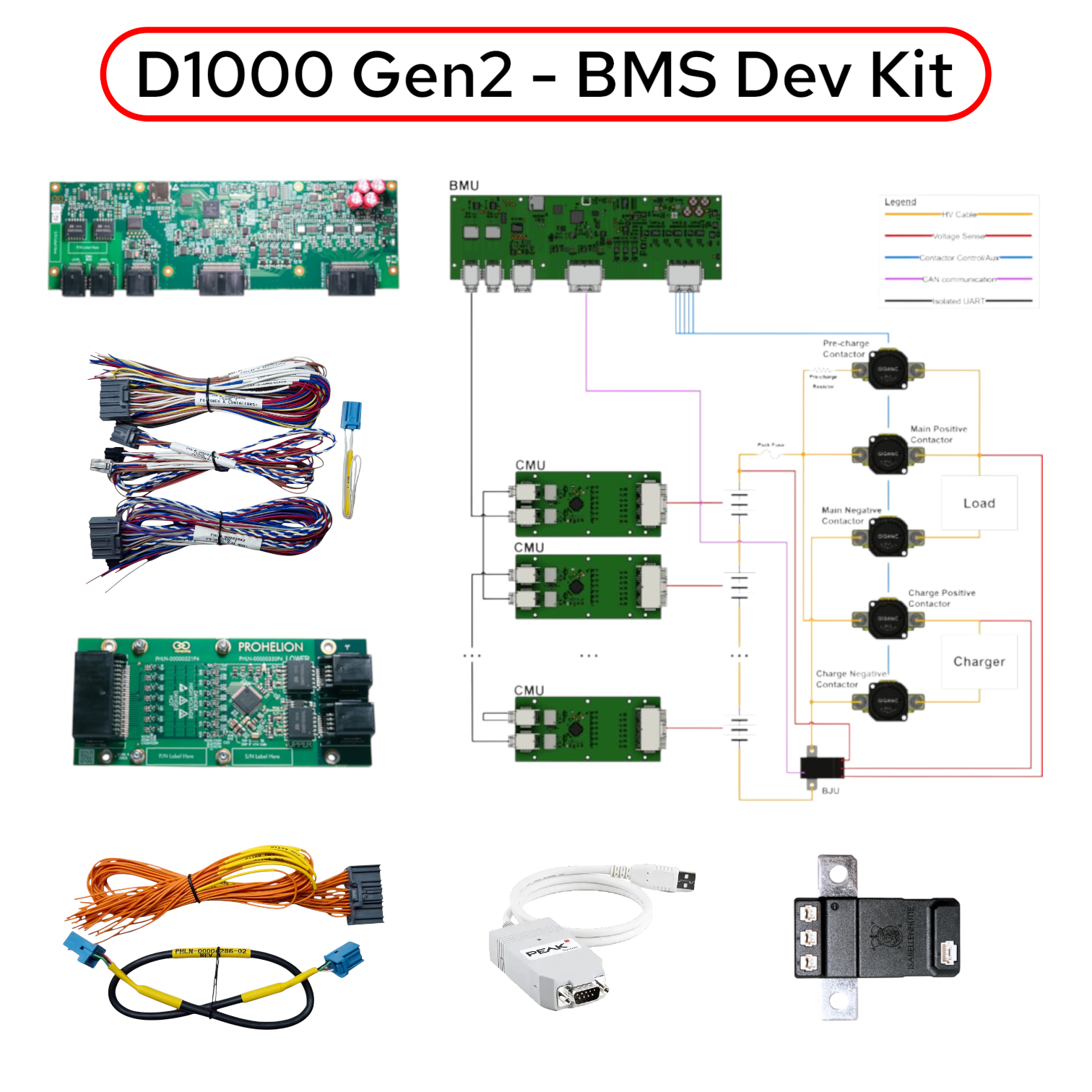

D1000 Gen2 BMS Development Kit Contents

• 1x D1000 Gen2 – Battery Management Unit (BMU)
• 1x D1000 Gen2 – BMU Harnessing Kit
• 1x D1000 Gen2 – Battery Junction Unit (BJU)
• 1x D1000 Gen2 – BJU Harnessing Kit

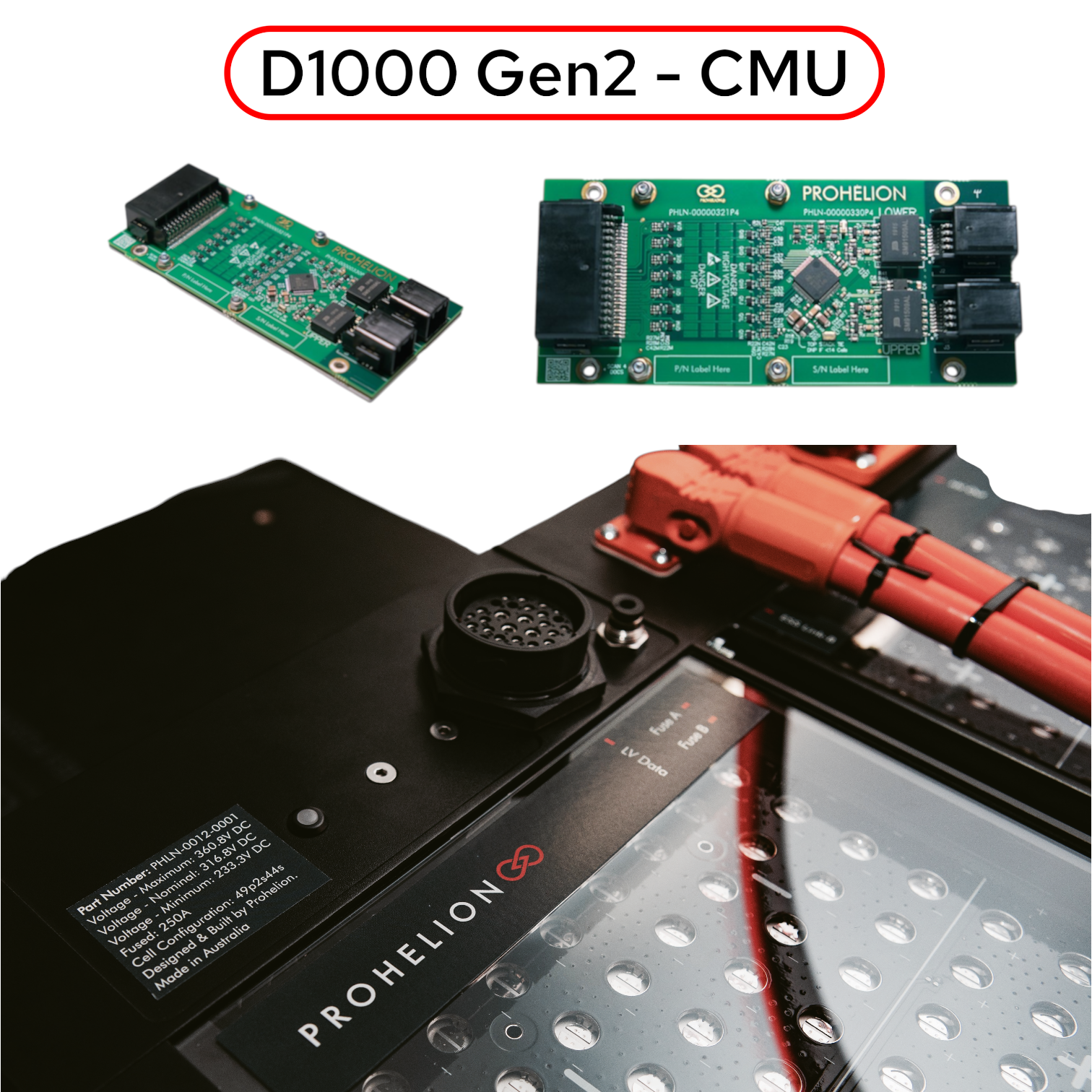

• 4x D1000 Gen2 – Cell Management Unit (CMU)
• 4x D1000 Gen2 – CMU Harnessing Kit
• 1x PEAK PCAN-USB Adapter

Applications for the D1000 Gen2 BMS

The D1000 Gen2 Development Kit is ideal for advanced battery system development:

• Next-generation electric vehicle battery system prototyping
• Advanced energy storage system development and testing
• Automotive battery management system validation
• Industrial battery application development
• Research and development of cutting-edge battery technologies
• Grid-scale energy storage prototype development
• Multi-chemistry battery system evaluation
• Environmental monitoring system development
• Advanced safety feature validation and testing

Documentation

Comprehensive development resources are available through Prohelion’s documentation portal at: docs.prohelion.com

Support

For technical support, development assistance, or product inquiries, please visit our support portal where you can find comprehensive resources, submit support tickets, and access our knowledge base for D1000 Gen2 development and integration.
